Touareg Dimensions

Touareg dimensions

Here you’ll find all the dimensions for both the exterior and interior of the Touareg. Subsequent trims with differing dimensions are shown individually. Scroll down to find out more.

Exterior dimensions

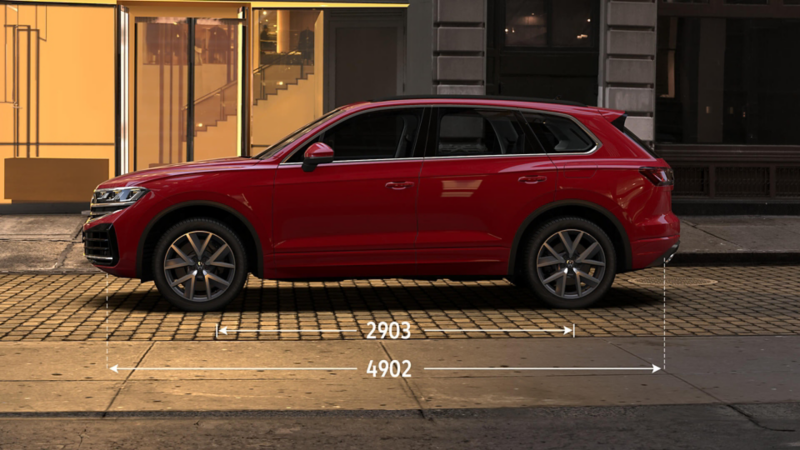

Touareg wheelbase dimensions
The Touareg's length and wheelbase dimensions.
Premium SUV bursting with character
Interior dimensions

mm

Length

4902

Wheelbase

2903

Turning circle

12200

Width - excluding door mirrors

1984

Height

1712

mm

4902

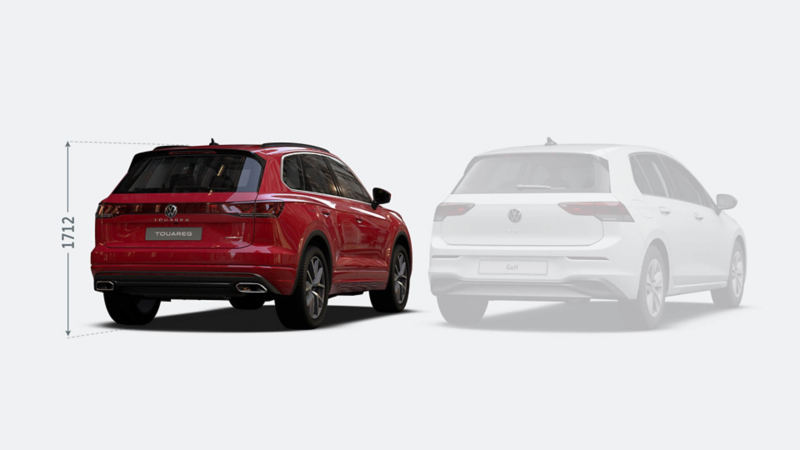

Touareg and Golf comparison rear dimensions
The back height of the Touareg compared to a Golf.

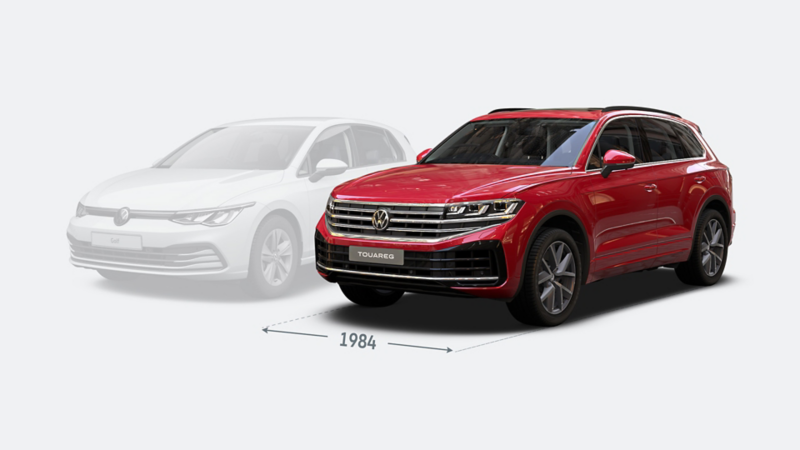

Touareg and Golf comparison front dimensions
The front width of a Touareg compared to a Golf.

Interior dimensions

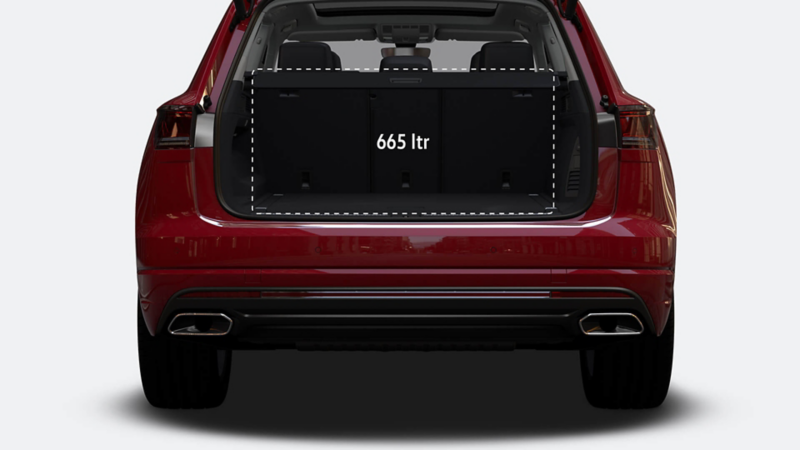

Touareg boot capacity
 The Touareg ’s boot capacity.
Plenty of space
Interior dimensions

mm

Interior width - front

1584

Interior width - rear

1547

Width - excluding door mirrors

1984

Boot length, with rear seats upright

1037

Boot length, with rear seats folded

1910

Boot volume

665 ltr

Effective headroom maximum - front (with sunroof)

1049

Effective headroom maximum - rear (with sunroof)

990

mm

1584

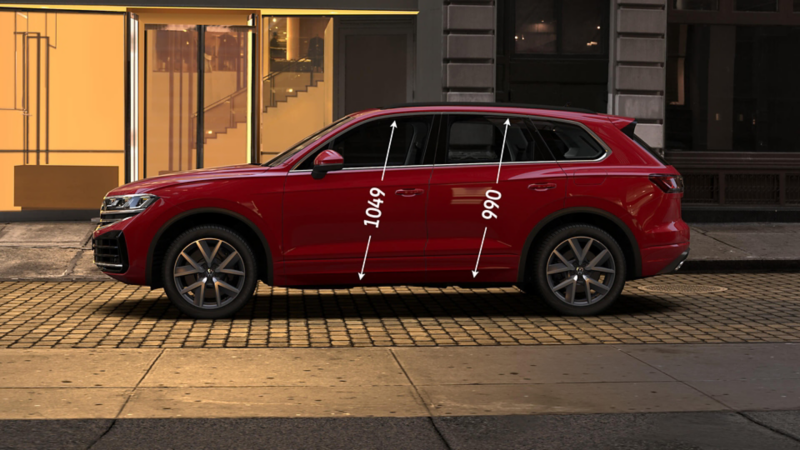

Touareg door heights
The Touareg's front and rear door heights.

Touareg Black Edition dimensions

Exterior dimensions

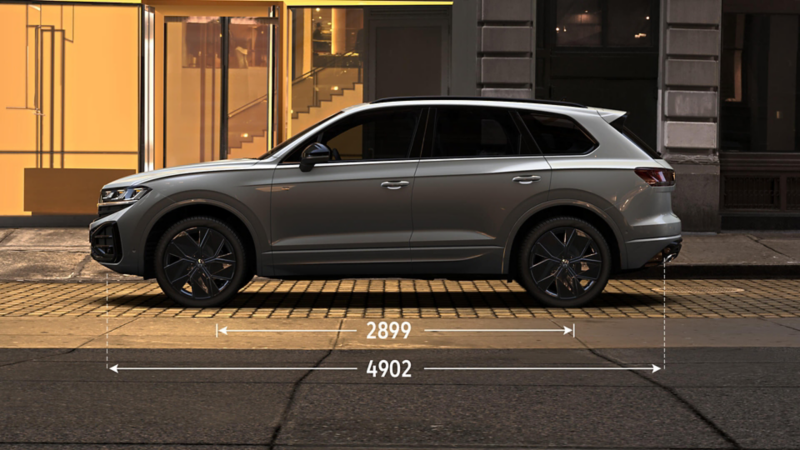

Touareg Black Edition wheelbase dimensions
The Touareg Black Edition length and wheelbase dimensions.
An exterior that excels
Interior dimensions

mm

Length

4902

Wheelbase

2899

Turning circle

12400

Width - excluding door mirrors

1984

Height

1695

mm

4902

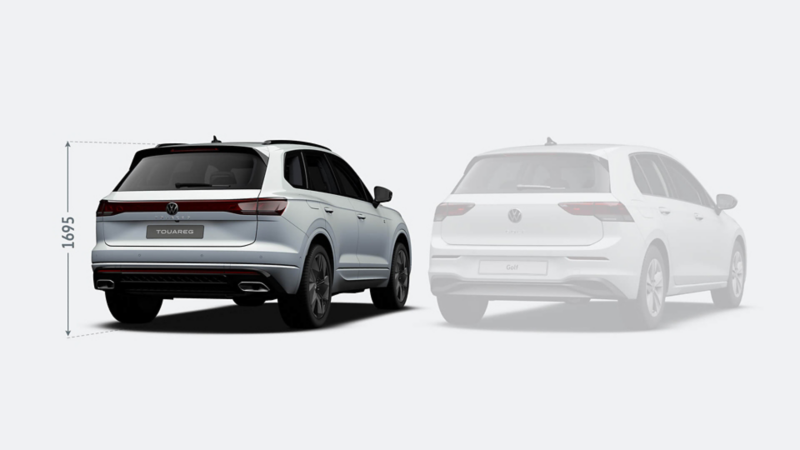

Touareg Black Edition and Golf comparison rear
The back height of the Touareg Black Edition compared to a Golf.

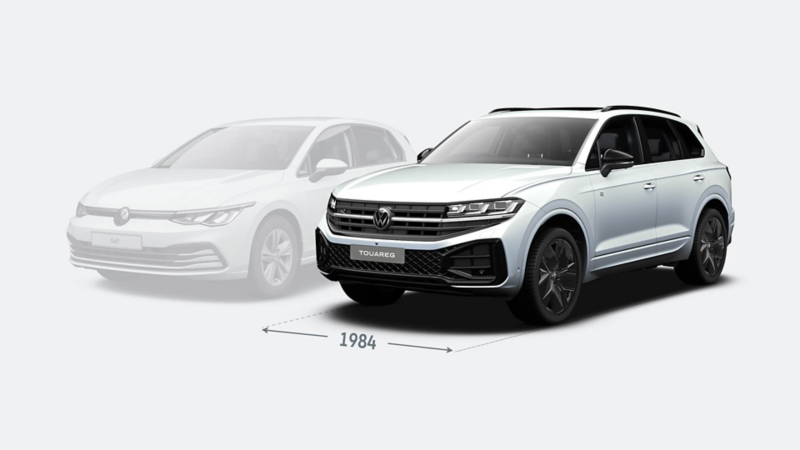

Touareg Black Edition and Golf comparison front
The front width of a Touareg Black Edition compared to a Golf.

Interior dimensions

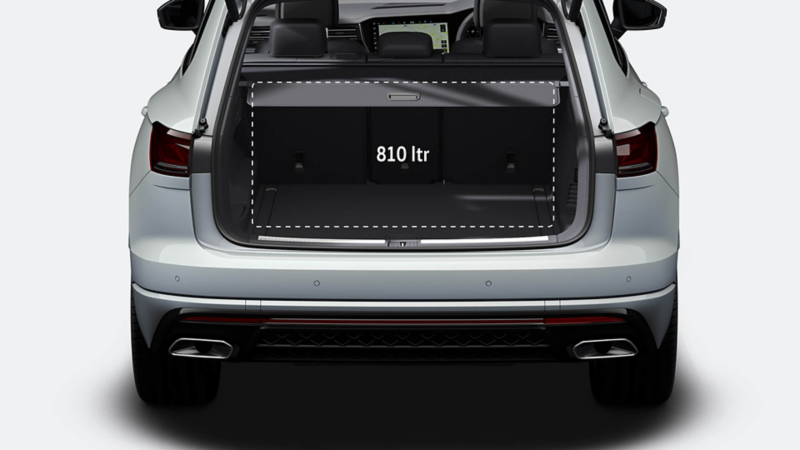

Touareg Black Edition boot capacity
 The Touareg Black Edition boot capacity.
Plenty of space
Interior dimensions

mm

Interior width - front

1584

Interior width - rear

1547

Boot length, with rear seats upright

1051

Boot length, with rear seats folded

1910

Boot volume

810 ltr

Effective headroom maximum - front (with sunroof)

1049

Effective headroom maximum - rear (with sunroof)

990

mm

1584

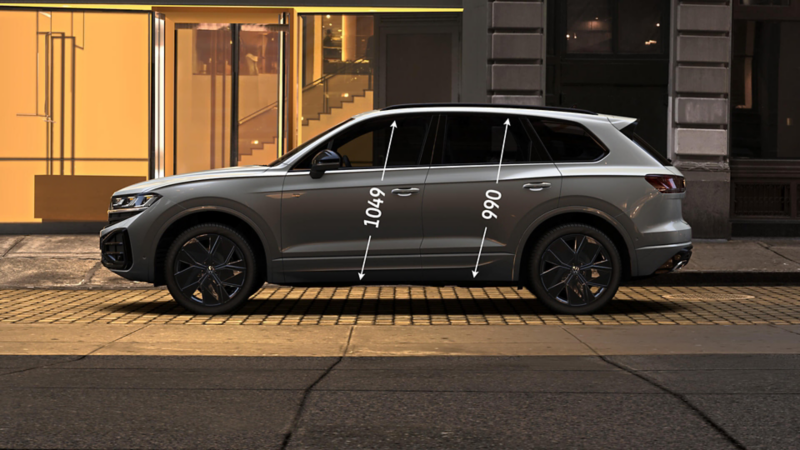

Touareg Black Edition door heights
The Touareg Black Edition front and rear door heights.

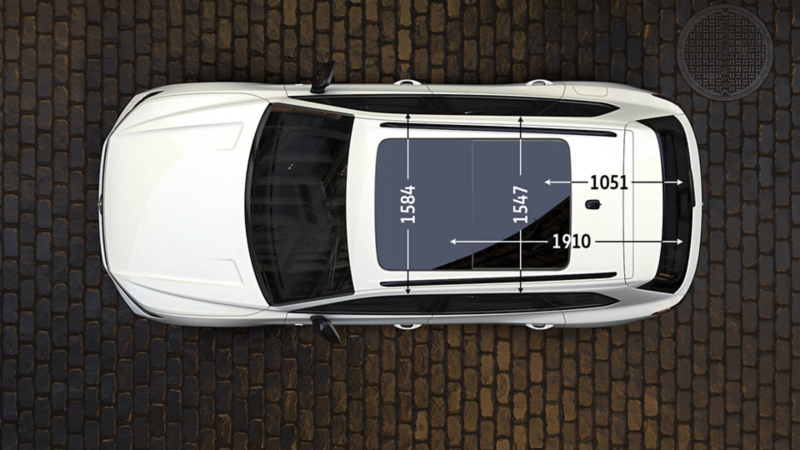

Touareg Black Edition boot depth dimensions
The boot depth with the rear seats up and down in the Touareg Black Edition.

Touaregdimensions

Exterior dimensions

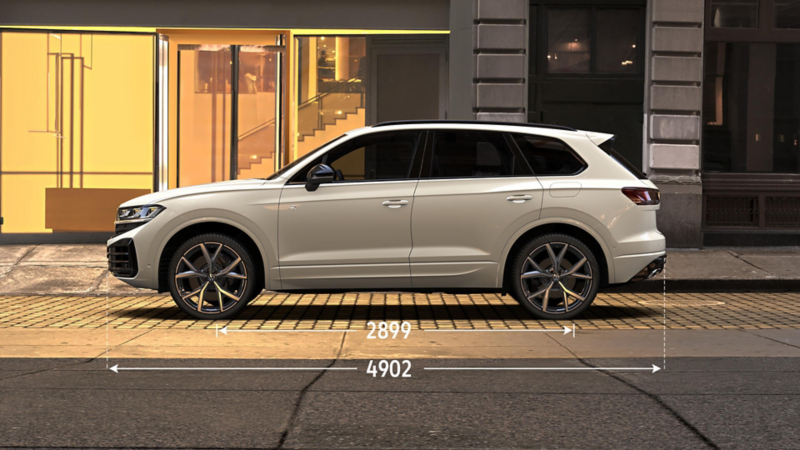

Touareg R wheelbase dimensions
The Touareg R length and wheelbase dimensions.
Bold lines, big presence
Interior dimensions

mm

Length

4902

Wheelbase

2899

Turning circle

12400

Width - excluding door mirrors

1984

Height

1693

mm

4902

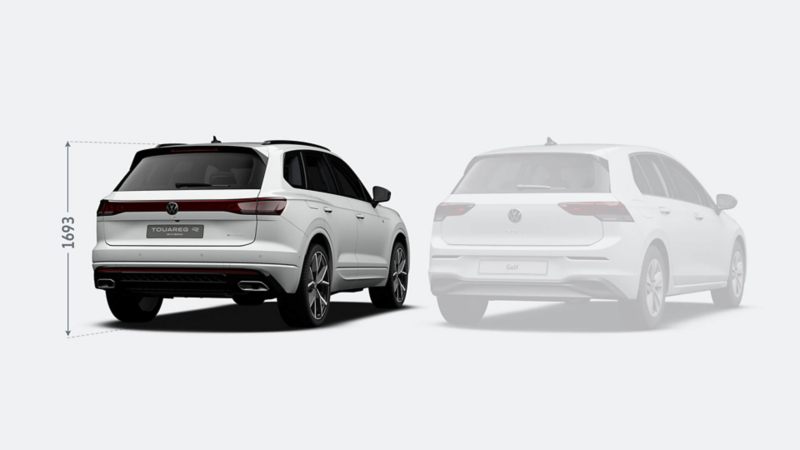

Touareg R and Golf comparison rear
The back height of the Touareg R compared to a Golf.

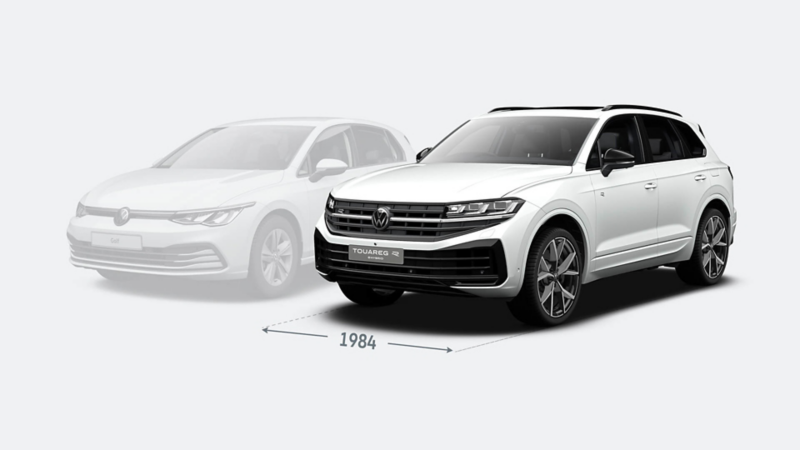

Touareg R and Golf comparison front
The front width of the Touareg R compared to a Golf.

Interior dimensions

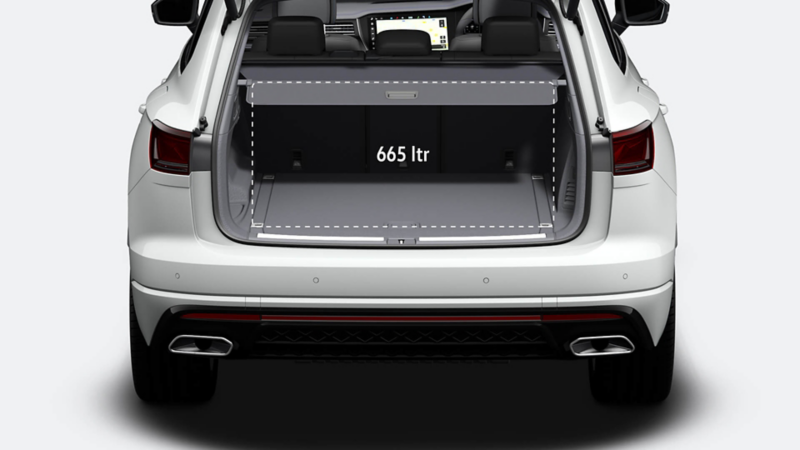

Touareg R boot capacity
 The Touareg R boot capacity.
 100% electric boot lid
Interior dimensions

mm

Interior width - front

1584

Interior width - rear

1547

Boot length, with rear seats upright

1037

Boot length, with rear seats folded

1889

Boot volume

665

Effective headroom maximum - front (with sunroof)

1049

Effective headroom maximum - rear (with sunroof)

990

mm

1584

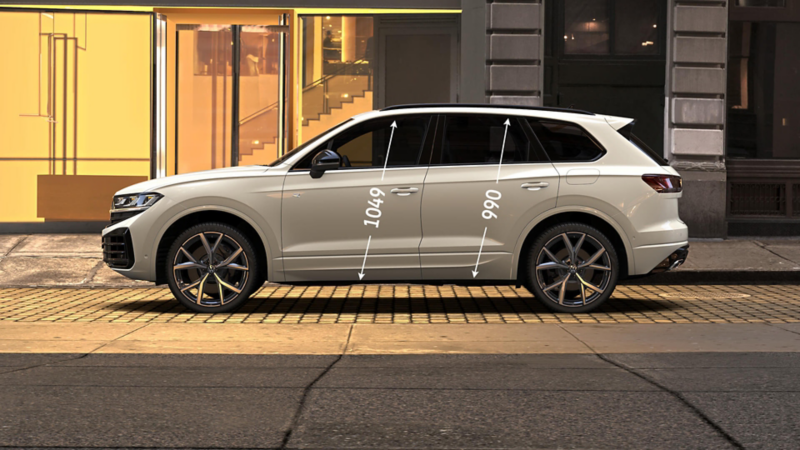

Touareg R door heights
The Touareg R front and rear door heights.

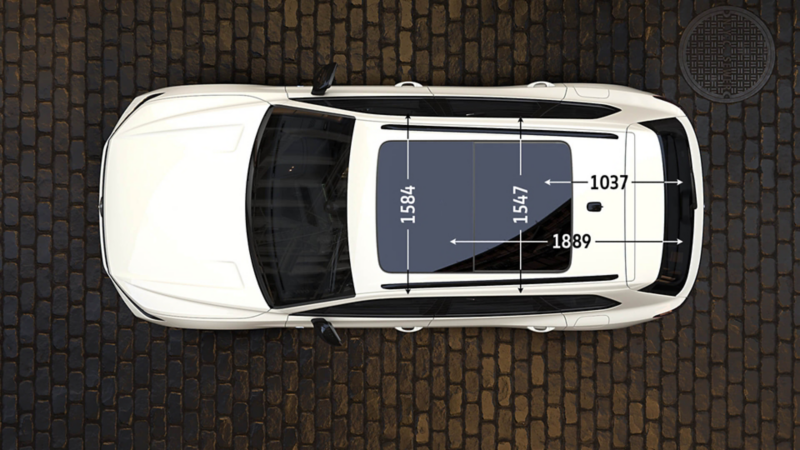

Touareg R boot depth
The boot depth with the rear seats up and down in the Touareg R.
