Passat dimensions

Passat dimensions for 7-speed trims

Here you’ll find all the dimensions for both the exterior and interior of the Passat. See below to find out more about the dimensions for the following Passat trims.

Passat Life - 1.5 eTSI 150PS 7-speed DSG 5 Door
Passat Elegance - 1.5 eTSI 150PS 7-speed DSG 5 Door
Passat R-Line - 1.5 eTSI 150PS 7-speed DSG 5 Door

Exterior dimensions

Side view of a red VW Passat with length and wheelbase dimensions displayed
The Passat's length and wheelbase dimensions.
Longer, wider, sleeker.
Interior dimensions

mm

Length

4917

Wheelbase

2837

Turning circle

12000mm

Width - excluding door mirrors

1849

Height

1521

mm

4917

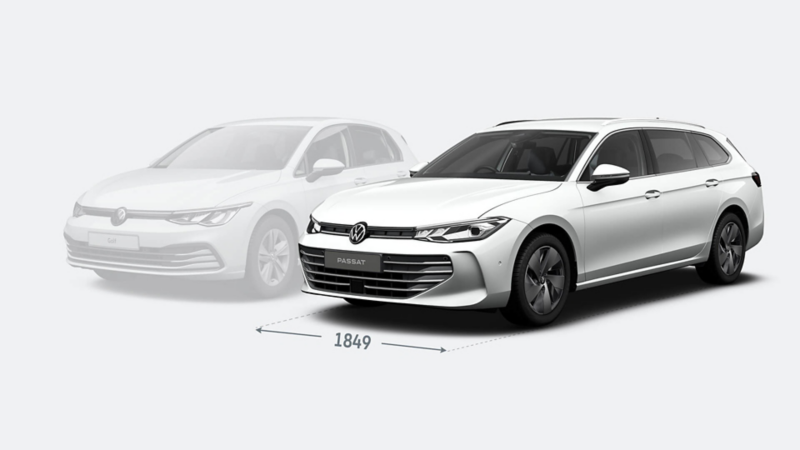

Front three-quarter view of a VW Passat with the width displayed compared to a Golf.
The front width of the Passat compared to a Golf.

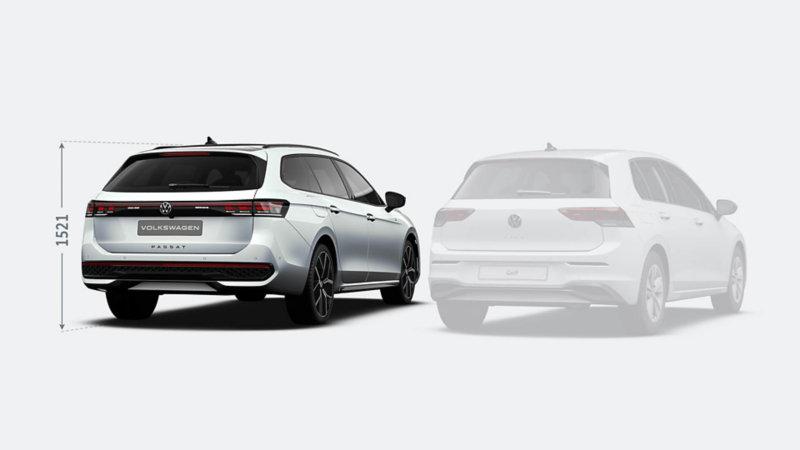

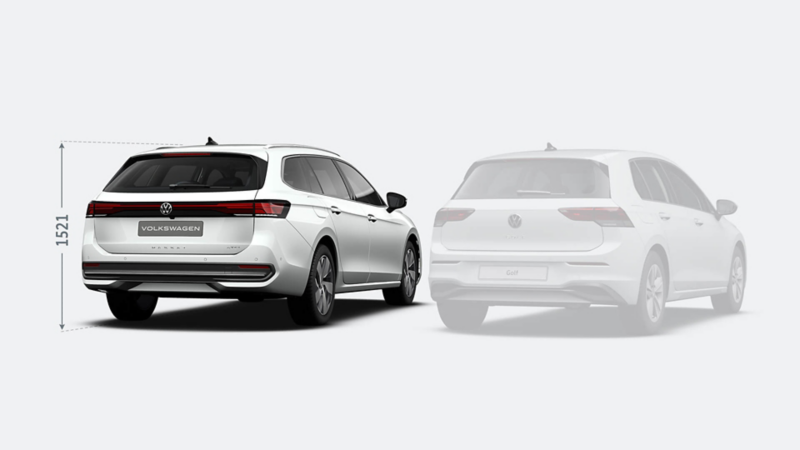

Rear three-quarter view of a VW Passat with the height displayed
The back height of the Passat compared to a Golf.
No compromise on agility

Interior dimensions

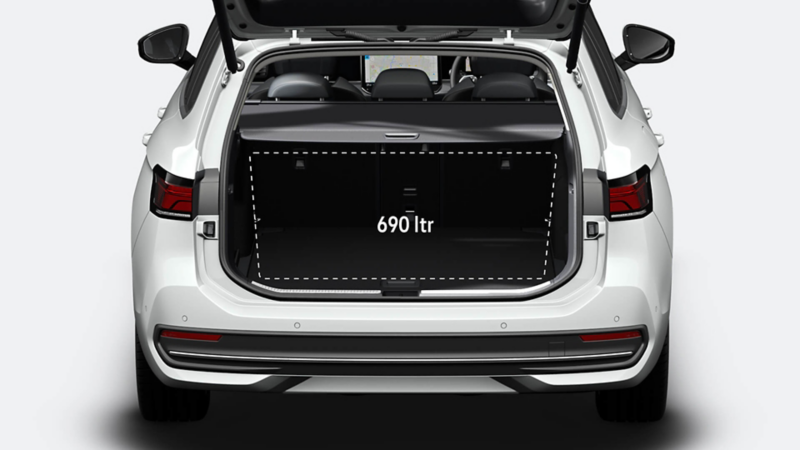

The Passat's boot capacity
 The Passat's boot capacity.
Extra length means extra space
Interior dimensions

mm

Interior width - front

1508

Interior width - rear

1506

Boot length, with rear seats upright

1127

Boot length, with rear seats folded

2018

Boot volume

690.1 ltr

Effective headroom maximum - front

1049

Effective headroom maximum - rear

1008

mm

1508

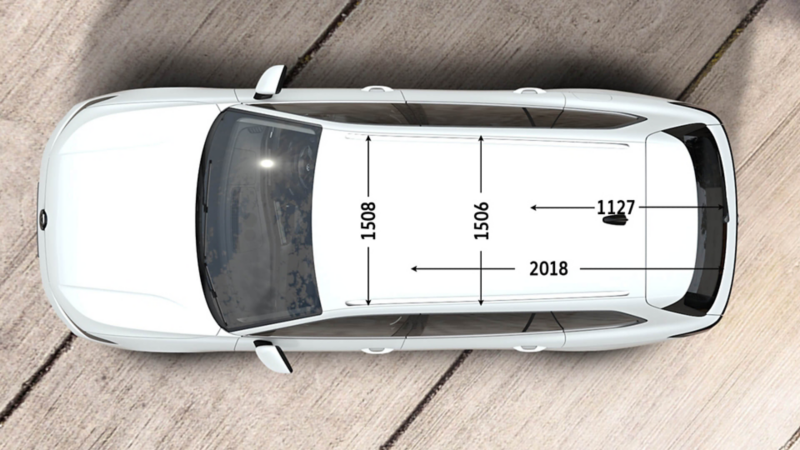

Top view of a VW Passat with the boot depth dimensions displayed with the rear seats up and down
The boot depth with the rear seats up and down in the Passat.

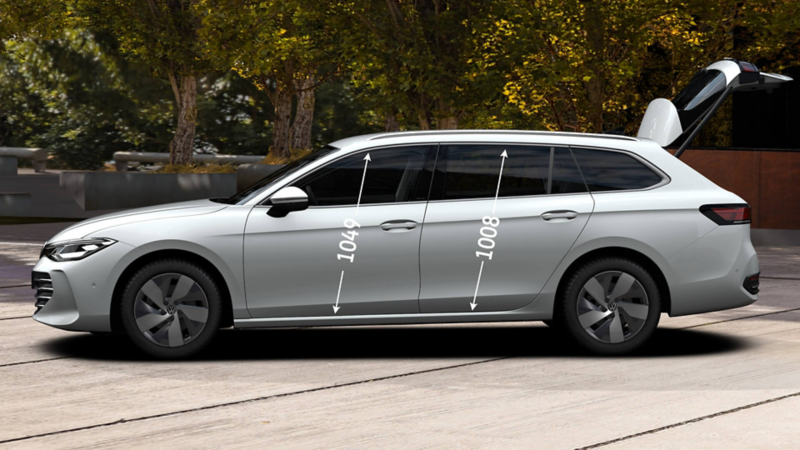

Side view of a VW Passat with front and rear door height dimensions displayed
The Passat front and rear door heights.

Passat dimensions for 6-speed trims

See below to find out more about the dimensions for the following Passat trims.

Passat Life - 1.5 TSI eHybrid 204PS 6-speed DSG 5 Door
Passat Elegance - 1.5 TSI eHybrid 204PS 6-speed DSG 5 Door
Passat Elegance - 1.5 TSI eHybrid 272PS 6-speed DSG 5 Door
Passat R-Line - 1.5 TSI eHybrid 204PS 6-speed DSG 5 Door
Passat R-Line - 1.5 TSI eHybrid 272PS 6-speed DSG 5 Door

Exterior dimensions

Side view of a red VW Passat with length and wheelbase dimensions displayed
The Passat's length and wheelbase dimensions.
Longer, wider and with extra space.
Interior dimensions

mm

Length

4917

Wheelbase

2839

Turning circle

12000mm

Width - excluding door mirrors

1849

Height

1521

mm

4917

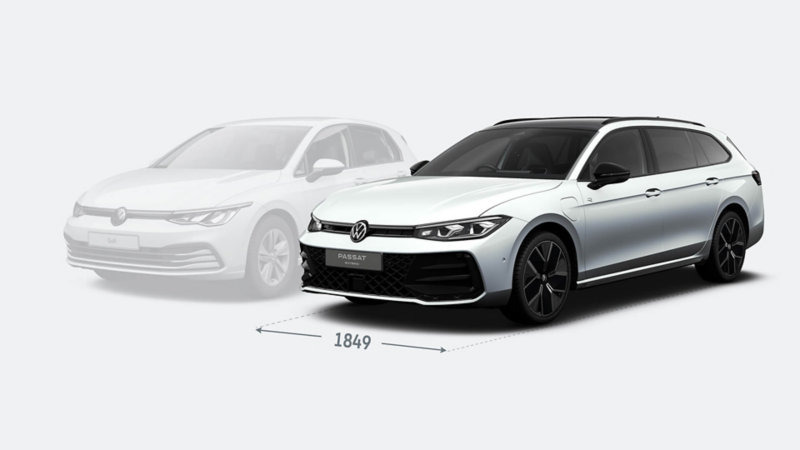

Front three-quarter view of a VW Passat with the width displayed compared to a Golf.
The front width of the Passat compared to a Golf.
Rear three-quarter view of a VW Passat with the height displayed
The back height of the Passat compared to a Golf.
No compromise on style

Interior dimensions

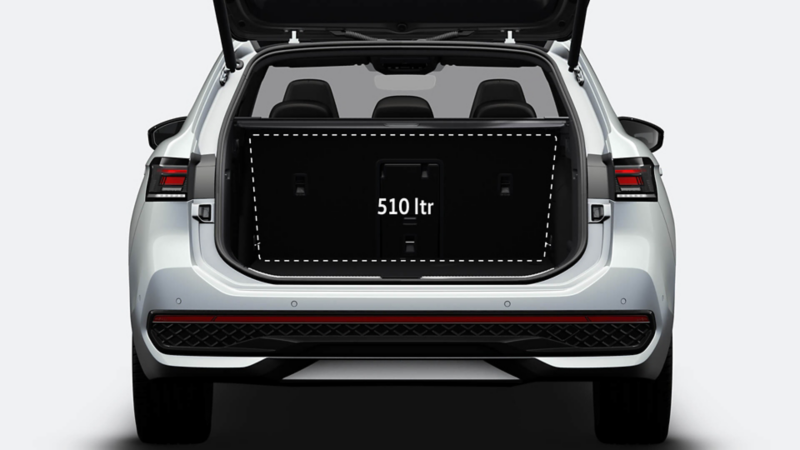

The Passat's boot capacity
 The Passat's boot capacity.
A generously spacious interior
Interior dimensions

mm

Interior width - front

1508

Interior width - rear

1506

Boot length, with rear seats upright

1140

Boot length, with rear seats folded

2027

Boot volume

510.0 ltr

Effective headroom maximum - front

1049

Effective headroom maximum - rear

1008

mm

1508

Top view of a VW Passat with the boot depth dimensions displayed with the rear seats up and down
The boot depth with the rear seats up and down in the Passat.

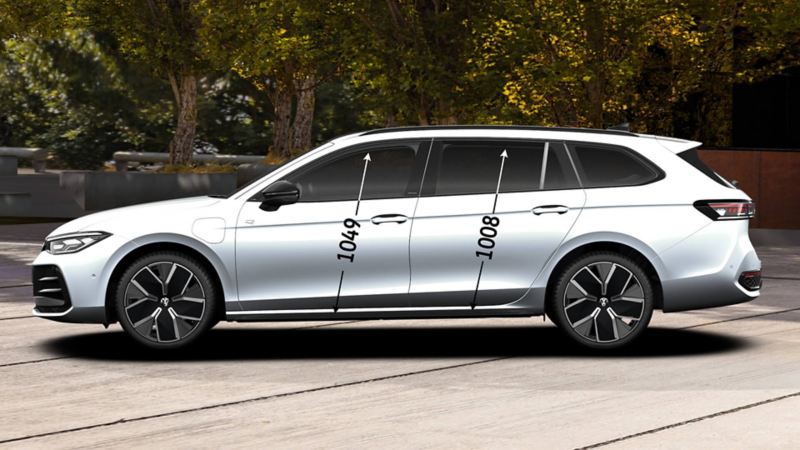

Side view of a VW Passat with front and rear door height dimensions displayed
The Passat front and rear door heights.
